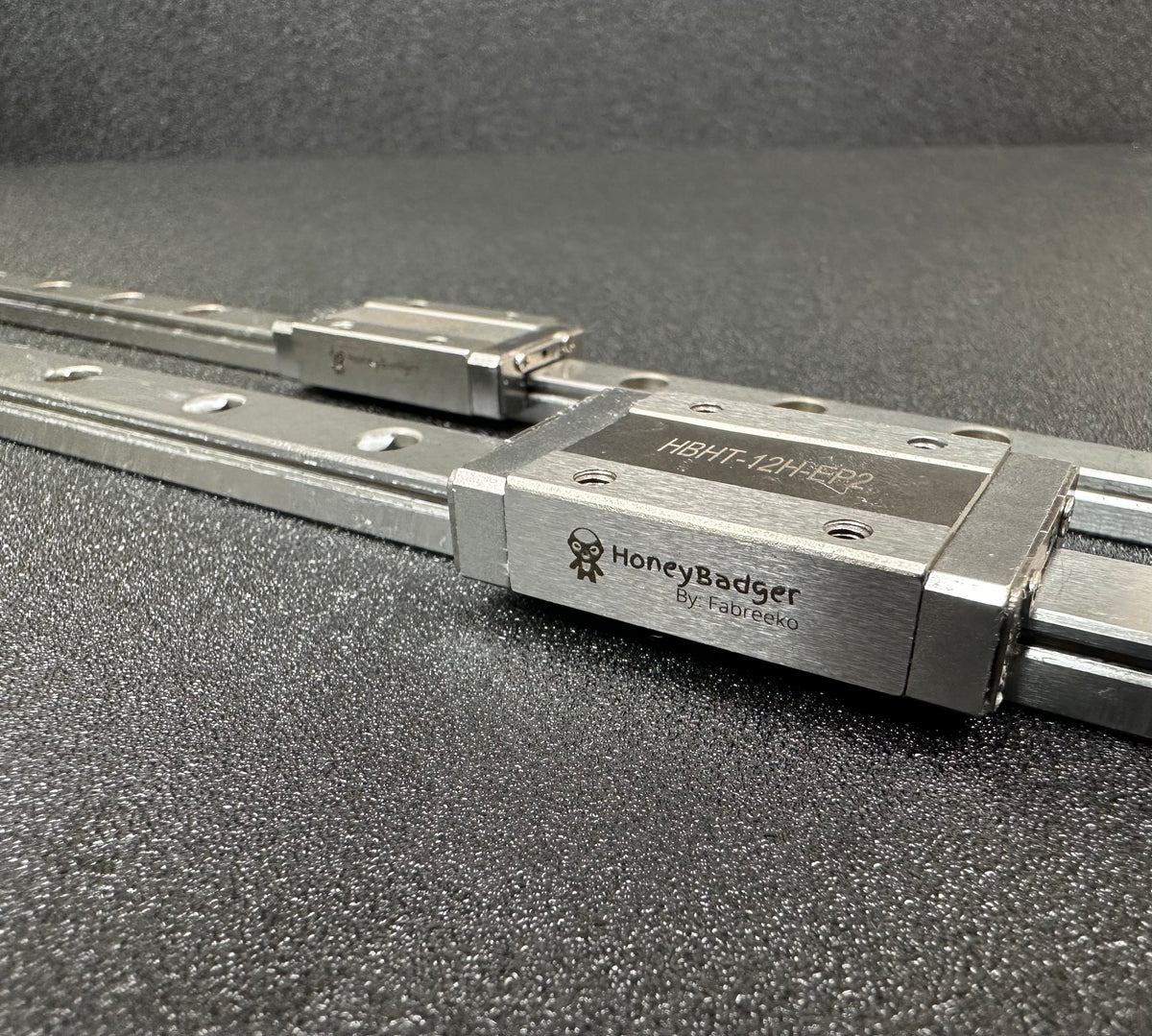

• HoneyBadger high temp Stainless Steel Rails MGN12H/MGN9H/MGN9C by Fabreeko – product photo 1

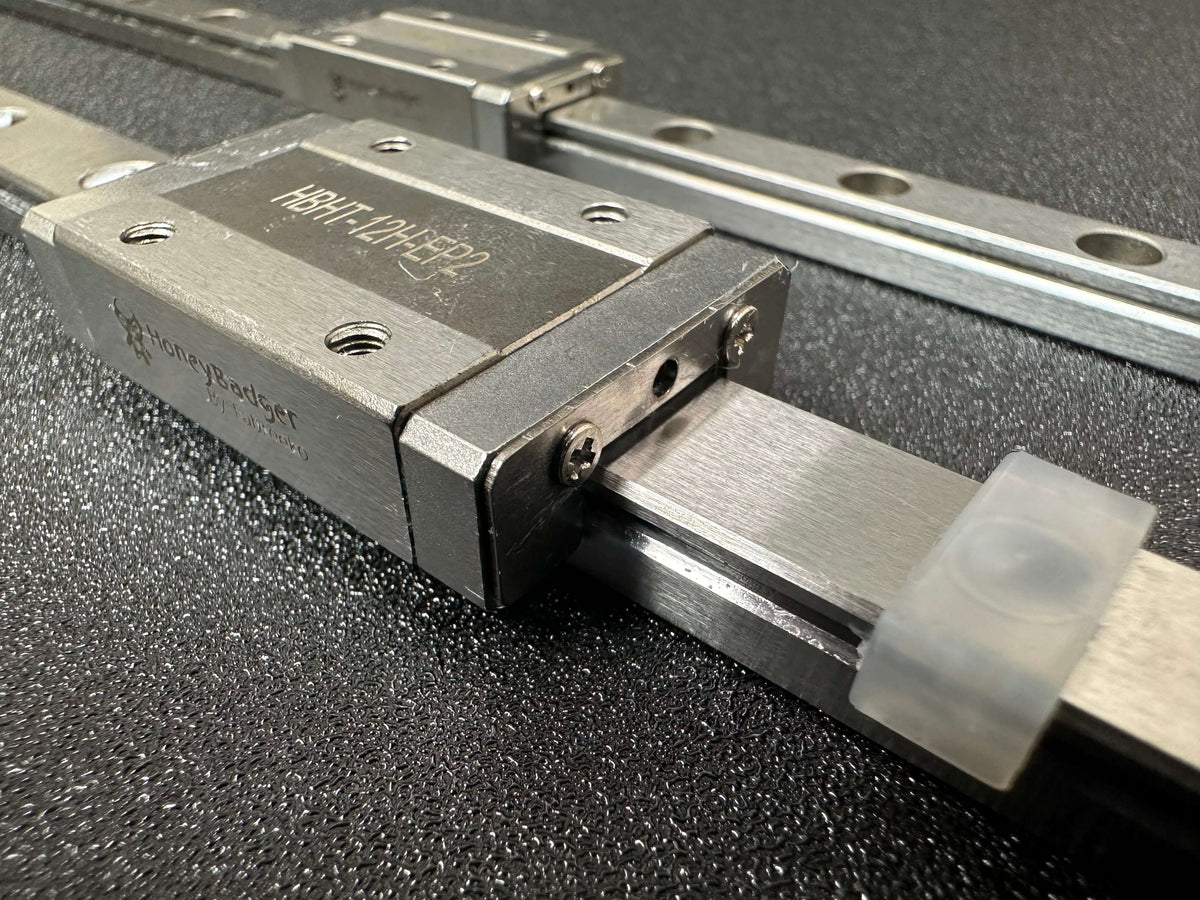

  • HoneyBadger high temp Stainless Steel Rails MGN12H/MGN9H/MGN9C by Fabreeko – product photo 2

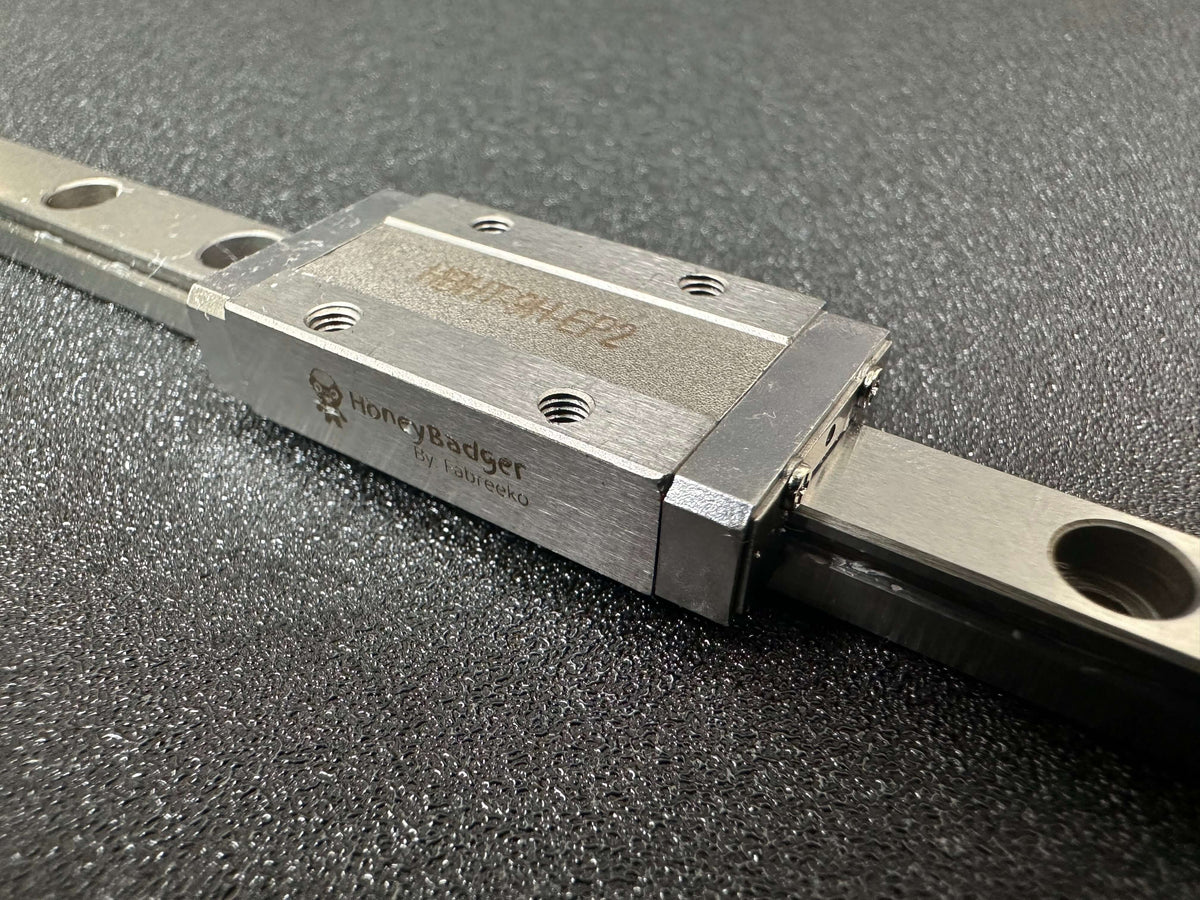

  • HoneyBadger high temp Stainless Steel Rails MGN12H/MGN9H/MGN9C by Fabreeko – product photo 3

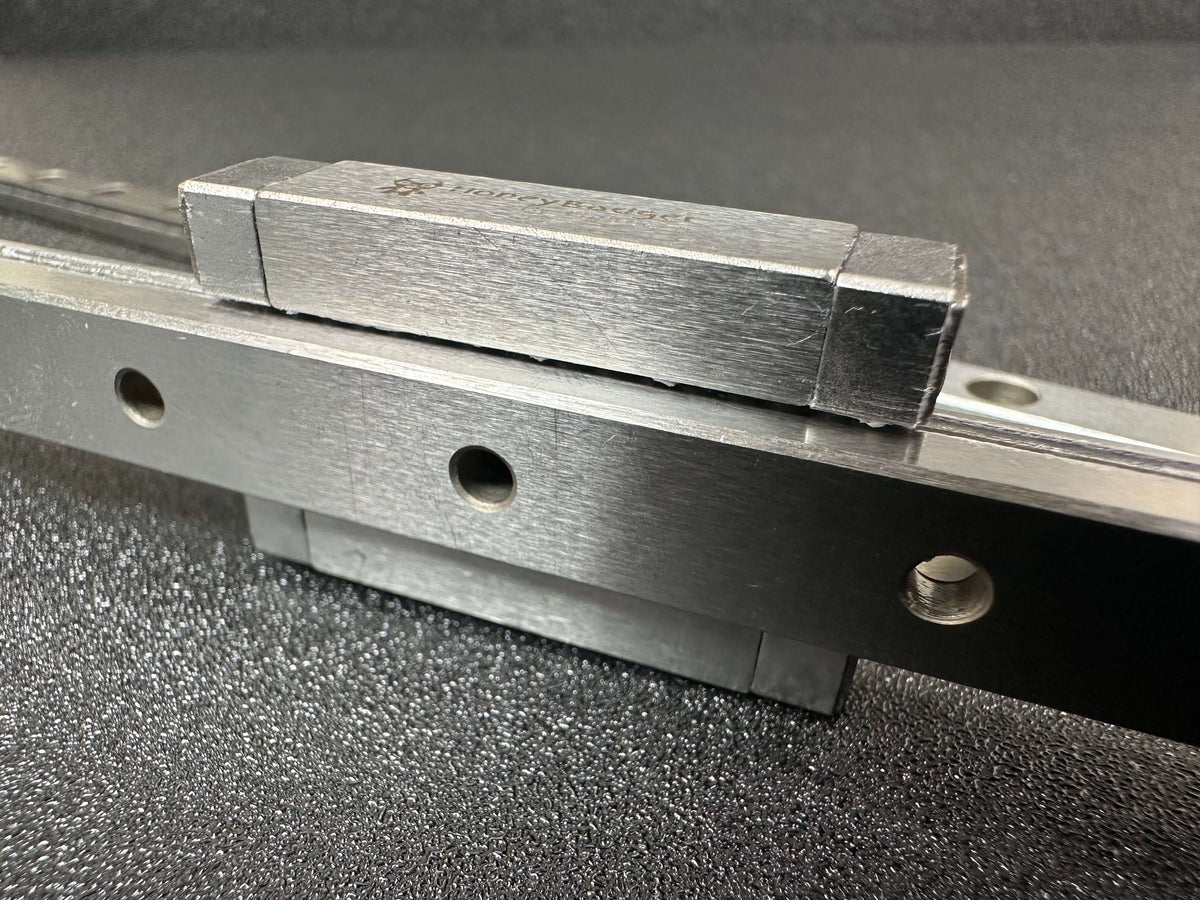

  • HoneyBadger high temp Stainless Steel Rails MGN12H/MGN9H/MGN9C by Fabreeko – product photo 4
  • HoneyBadger high temp Stainless Steel Rails MGN12H/MGN9H/MGN9C by Fabreeko – product photo 5
1 5

Fabreeko

HoneyBadger high temp Stainless Steel Rails MGN12H/MGN9H/MGN9C

HoneyBadger high temp Stainless Steel Rails MGN12H/MGN9H/MGN9C

4.3 store rating · 6 reviews of CONSUM3D
$64.99 USD
$72.99 USD $64.99 USD
Sale Sold out
Shipping calculated at checkout.

10 in stock

Type
Size
  • Ships in 1–3 business days
  • 7-day returns on unopened items
  • Real people answer: bsys@consum3d.com

You may also want these

Ships to the 48 contiguous U.S. states. Handling takes 1–3 business days, then delivery takes 3–10 business days.

Returns accepted within 7 days of delivery for new, unopened items.

Shipping costs, cutoff time and returns
  • The exact shipping cost is shown at checkout before you pay.
  • Orders placed after 4:00 PM Eastern Time are processed on the next business day.
  • Shipping fees are non-refundable unless the return is due to our error. You pay return shipping unless the item arrived damaged or incorrect.
Shipping policy · Refund policy

HoneyBadger high temp Stainless Steel Rails MGN12H/MGN9H/MGN9C


Introducing the High-Temperature HoneyBadger Rails, meticulously engineered to withstand extreme conditions with an all-metal construction and high preload. Designed for unparalleled durability, these rails are crafted from 440c Hardened Stainless Steel, ensuring long-lasting performance even in the most demanding environments.

Unlike HoneyBadger's standard rails, these high-temp versions are tailored for applications requiring superior thermal Performance, featuring Metal seals and polished cast ends. Pre lubed with Krytox Gpl-226 for seamless operation right out of the box, reducing the need for initial soaking in IPA or degreaser. Simply top off with your favorite high temp grease or low temp grease via the grease port ready to go action. Class H Rails Requirements, promise consistency and excellence in every use.




Specs

  • medium-high custom preload (Z1.5) for improved performance
  • Class H Rails to ensure more a consistent and better out of the box experience (more details below)
  • Rails are Provided clean and ready for lube, an optional cleaning in IPA to remove any contaminants that may have been exposed to during the packing and shipping process. HoneyBadger recommends toping off with Krytox GPL 226 for high temp applications Or EP2 for normal temps, keep in mind GPL226 is not suited for normal temp operations.

  • 440c Hardened Stainless Steel construction for longevity and thicker 6.5mm guides.

Class H QC requirements:

  1. straightness tolerance of the guide rail is within 0.01mm per meter, and the symmetry of the R groove on both sides of the guide rail and the slider is within 0.002mm.
  2. The height (H) of the final assembly is less than 0.02mm.
  3. The total length of the guide rail and the end distance at both ends are within +/- 0.15mm. EDM precision cut
  4. The change in parallelism of the finished rail is less than 0.016mm per meter

note: while these have EP2 as part of the model number they are correct filled with Krytox gpl 226
