The Virtual Foundry

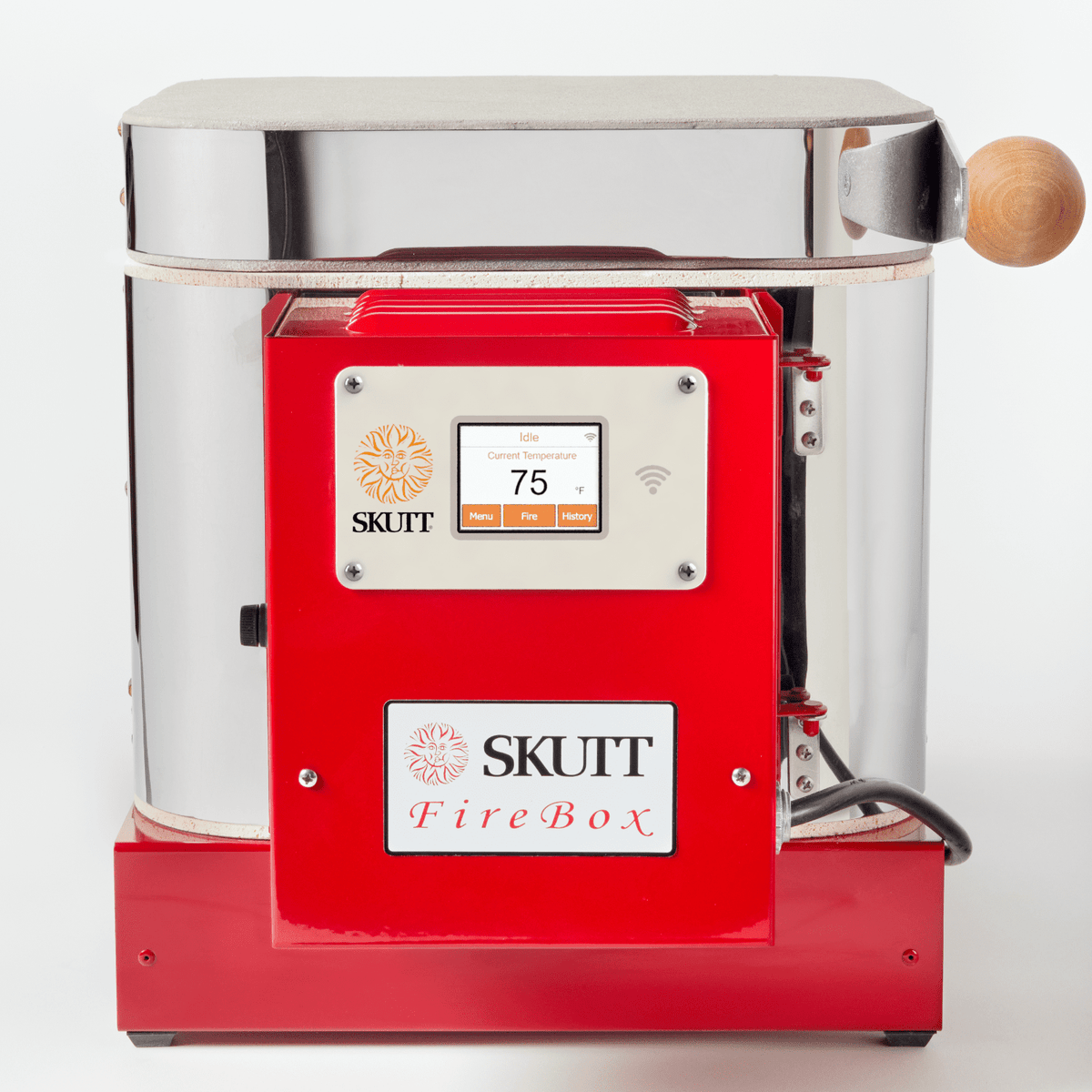

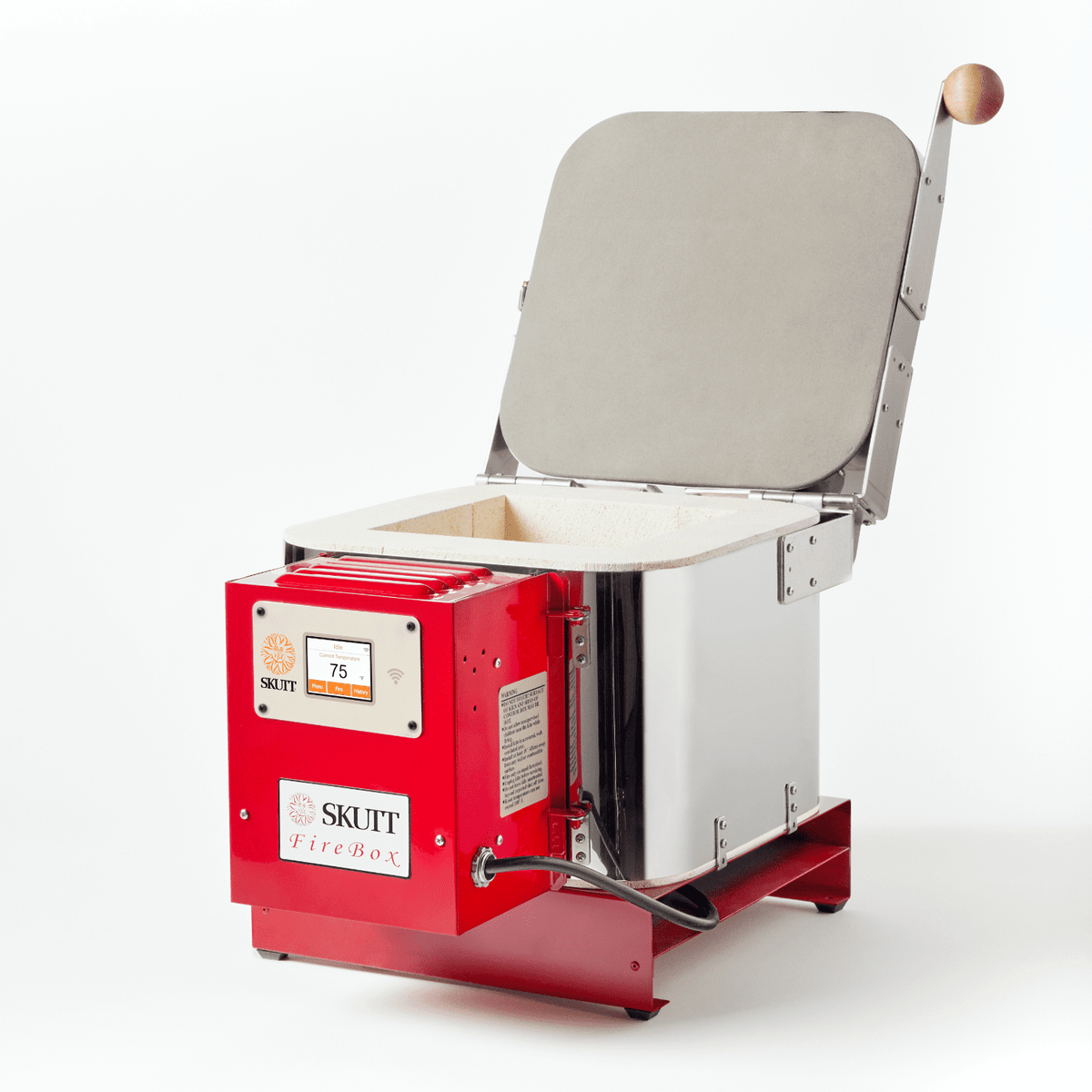

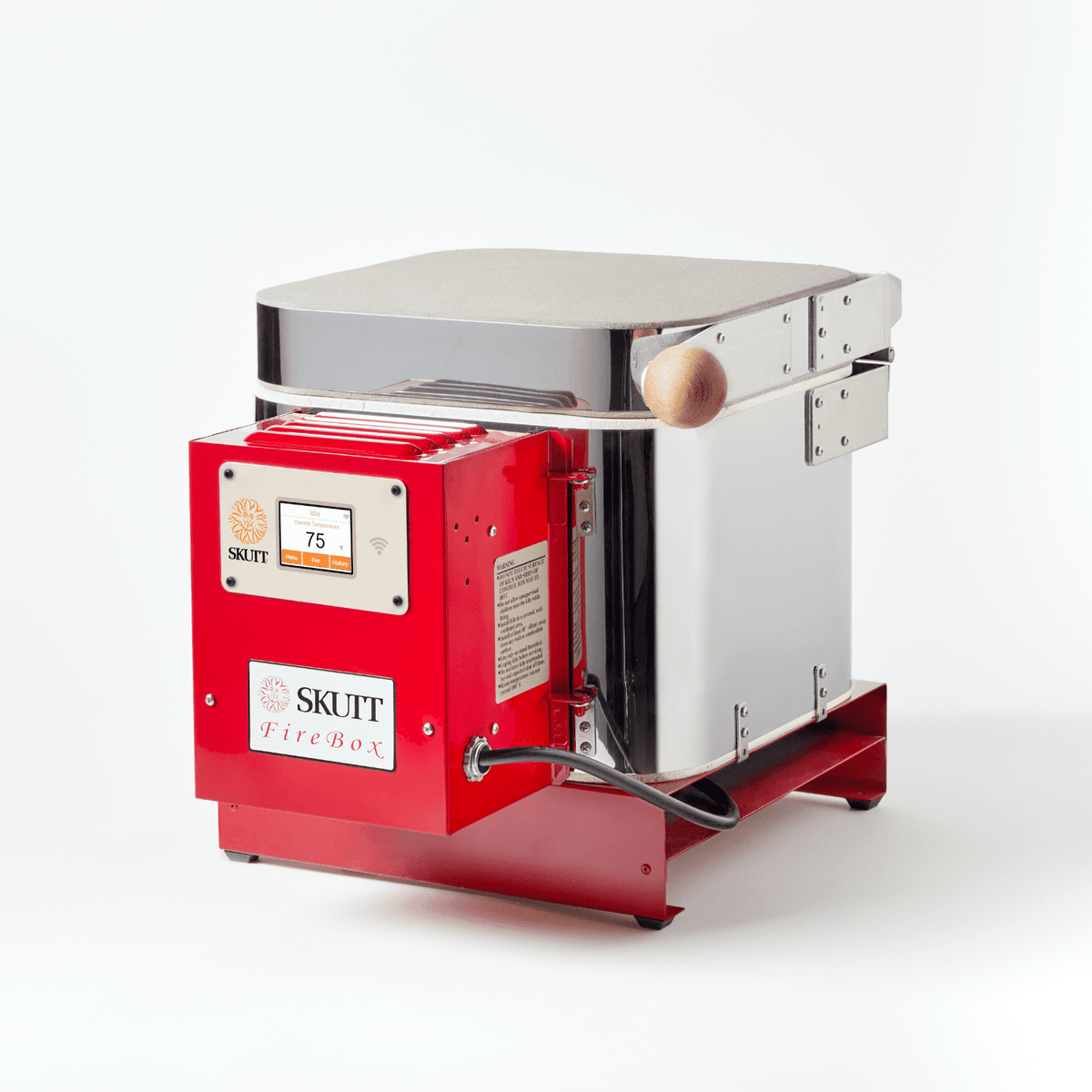

FireX Sintering Kiln

FireX Sintering Kiln

4.3 store rating · 6 reviews of CONSUM3D
$2,070.99 USD
$2,301.99 USD $2,070.99 USD
Sale Sold out
Shipping calculated at checkout.

504 in stock
  • Ships in 1–3 business days
  • 7-day returns on unopened items
  • Real people answer: bsys@consum3d.com

You may also want these

Ships to the 48 contiguous U.S. states. Handling takes 1–3 business days, then delivery takes 3–10 business days.

Returns accepted within 7 days of delivery for new, unopened items.

Shipping costs, cutoff time and returns
  • The exact shipping cost is shown at checkout before you pay.
  • Orders placed after 4:00 PM Eastern Time are processed on the next business day.
  • Shipping fees are non-refundable unless the return is due to our error. You pay return shipping unless the item arrived damaged or incorrect.
Shipping policy · Refund policy

The FireX Sintering Kiln will sinter printed metal, glass and ceramic 3D prints with the click of a button. This kiln is designed to reach a maximum temperature of 1260°C / 2300°F.

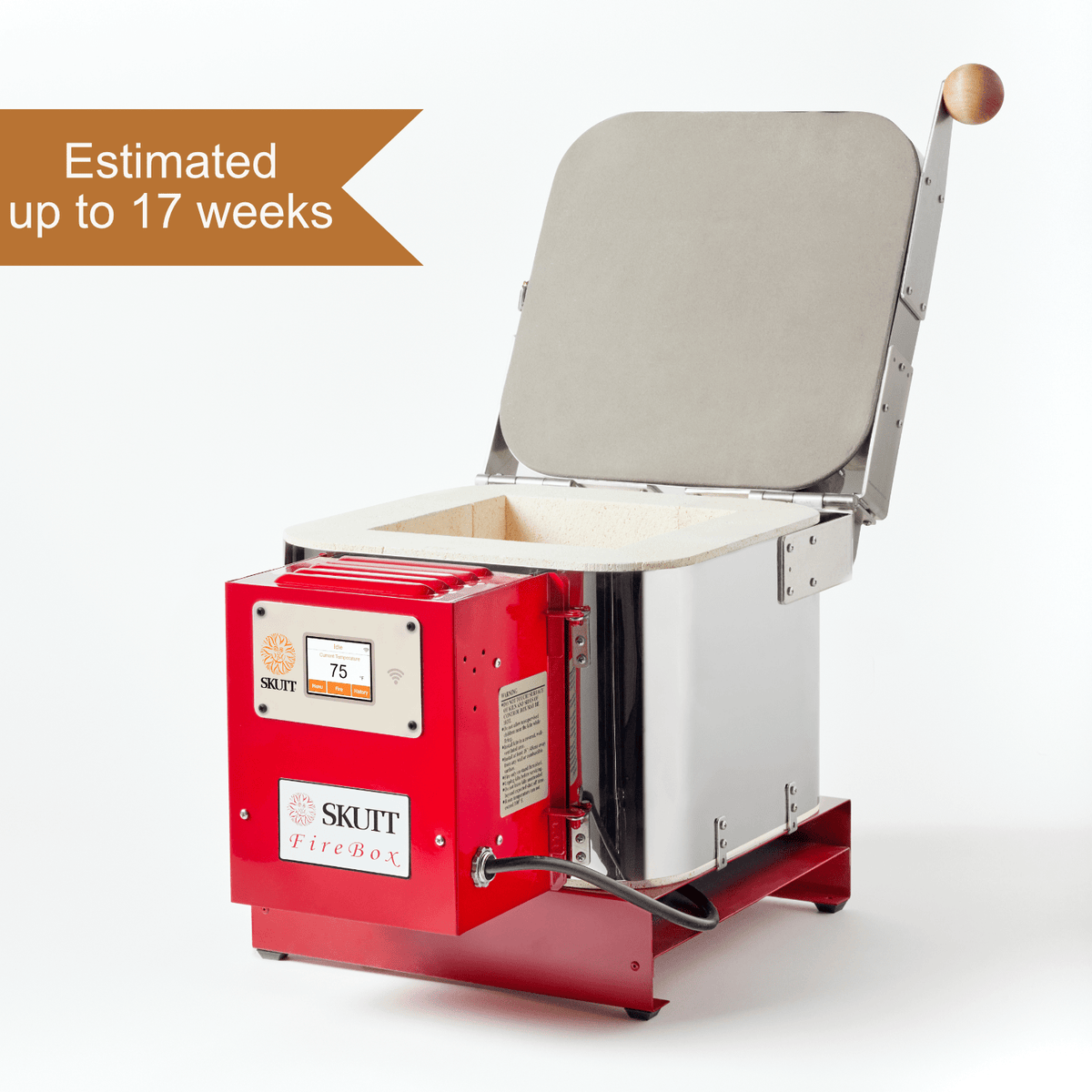

Estimated up to 17 weeks

How it works:
3D Print, Pack, Sinter, Metal!
"Pack" the printed part in Sintering Refractory Ballast, cover with Sintering Carbon, and load the part in the Kiln. Select the parameters for sintering, click start and your parts will soon turn to functional metal objects!

Proper ventilation is required while operating kiln. Kilns operate at a very high temperature, please use with extreme caution.

Specs:
115v, 15A, 1800w, 50/60Hz, Single Phase
Max. Temperature: 1260°C/2300°F
Controller: Mini Touchscreen
Plug: 5-15P
UL Listed

Compatible Materials:
Bronze, Copper, H13 Tool Steel, Inconel 718, M300 Tool Steel, Stainless Steel 17-4, Stainless Steel 316L, Pyrex® (Borosilicate), and Amaco 46-D.

Sintering Area / Chamber Volume:
8" Width x 8" Depth x 6" Height /
203mm Width x 203mm Depth x 152mm Height

Kiln Outer Dimensions:
15" Width x 20.5" Depth x 14.5" Height /
381mm Width x 521mm Depth x 368mm Height

Shipping Weight: ~58lbs

This Kiln Ships Via UPS

Only available in the USA

Works With Your Printer?

Ambrosia filament (1.75mm cardboard spool): Bambu Lab X1C, P1S, P1P, A1, A1 Mini with AMS; Prusa MK4/MK3S+/Mini+; Creality K1/K2/Ender 3 V3; Voron 2.4/Trident; most 1.75mm printers.

Push Plastic filament: 1.75mm spools work with Bambu X1C, Prusa MK4, Creality K1, Voron, RatRig, and all standard 1.75mm setups. 2.85mm spools work with Ultimaker S3/S5, LulzBot Taz Pro, and E3D toolchanger setups. Check the print settings in the product description for temperature and enclosure requirements specific to the material.

Unsure? Email bsys@consum3d.com. We reply within 24 business hours (Monday–Friday, 8 AM–4 PM).
